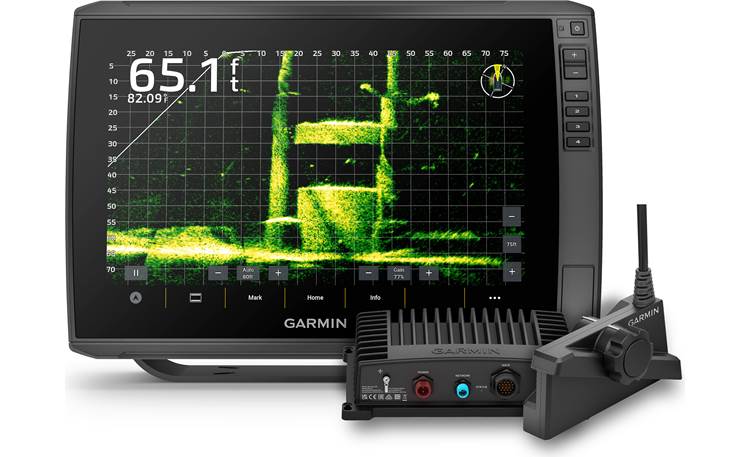

Garmin ECHOMAP Ultra 2 & LiveScope Plus Complete Bundle

Add to wishlist
> > > > SKU: N/A
  • package includes:
    • ECHOMAP Ultra 2 126sv 12″ chartplotter
    • LVS34 LiveScope sonar transducer
    • GLS 10 sonar module
    • trolling motor mount, Perspective Mode mount, shaft mount, marine network connector, power cables, and mounting hardware
Add to wishlist

$1,200.00 $1,090.00

Compare

Description

Product highlights:

  • package includes:
    • ECHOMAP Ultra 2 126sv 12″ chartplotter
    • LVS34 LiveScope sonar transducer
    • GLS 10 sonar module
    • trolling motor mount, Perspective Mode mount, shaft mount, marine network connector, power cables, and mounting hardware
ECHOMAP Ultra 126sv chartplotter:
  • keyed assist 12.1″ touchscreen
  • preloaded with Garmin Navionics+ coastal charts, inland maps, and tide tables (1-year subscription included)
    • map coverage for the entire U.S. and some of Canada, along with Bermuda and the Bahamas
    • Auto Guidance+ draws up quick, obstacle-free point-to-point routes on the water
  • compatible with Garmin’s ActiveCaptain app for data sharing, trip planning, smart notifications, screen recording, and more
  • preloaded Quickdraw Contours map creation software
  • multi-band/multi-constellation GNSS updates position and heading 10 times per second
  • dimensions: 13.56″W x 9″H x 2.19″D
  • warranty: 1 year

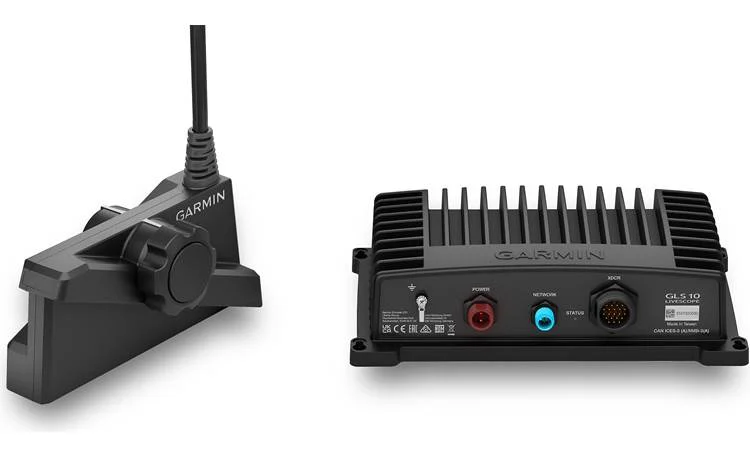

LiveScope Plus LVS34 sonar transducer and GLS 10 sonar module:
  • three viewing modes
    • LiveScope Forward mode displays fish and structures ahead and around your location
    • LiveScope Down mode displays fish and structures below and around your location
    • LiveScope Perspective mode provides an overhead view
  • built-in Attitude Heading Reference System (AHRS) stabilization
  • transmit power: 500 watts
  • target separation at 100′ range: 14 inches
  • 200-foot max range below and around your location

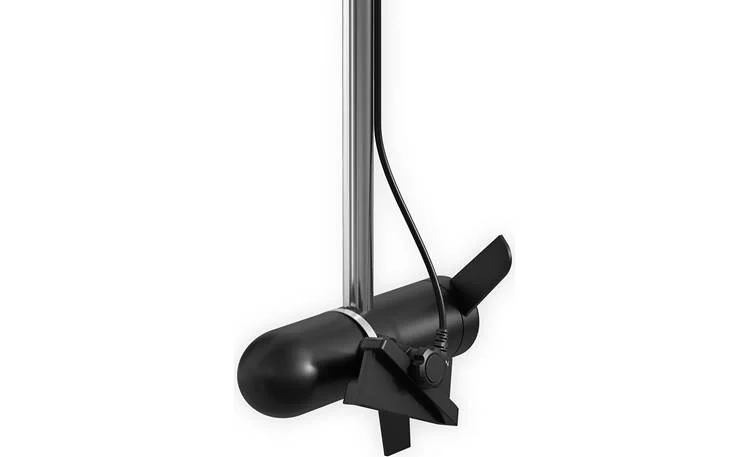

  • mounts to the transom, or to the shaft or motor barrel of your trolling motor
  • dimensions: 9.63″W x 2.52″H x 5.86″D (module); 1.9″W x 3.1″H x 6.4″D (transducer)
  • weight: 4.5 lbs. (module); 2.25 lbs. (transducer)
  • warranty: 1 year

What’s in the box:

Garmin ECHOMAP™ Ultra 2 & LiveScope™ Plus Bundle owner’s manual

If you need assistance accessing this owner’s manual, please give us a call.

    • The package includes three inner boxes:



  • The large top box includes:
  • LiveScope GLS 10 sonar black box
  • LiveScope Plus LVS34 transducer with attached 20′ cable (21-pin plug)
  • 91″ GLS 10 power cable (2-pin connector on one end and bare red/black wire on other end)
  • 78″ Garmin Marine Network cable (9-pin connectors on each end)
  • 19″ Garmin Marine Network adapter cable (RJ-45 plug on one end and round 5-pin connector on other end)
  • 4 Stainless steel screws (length 1″)
  • Ferrite bead (with instructions)
  • 2 Cable collars (each with red gaskets and instructions)
  • Parts Bag A:
  • Perspective Mode mounting bracket (front)
  • L-bracket
  • Knob with short thread
  • Parts Bag B:
  • Perspective Mode mounting bracket (back)
  • 4 Mount bracket screws (M5 hex socket head / 25mm length)
  • Parts Bag C:
  • Knob with long thread
  • M5 hex wrench
  • Rubber liner (3-1/8″ x 2″)
  • Parts Bag D:
  • Trolling Motor mounting bracket
  • Hose clamp
  • Parts Bag E:
  • Trolling Motor shaft mounting bracket (front)
  • Parts Bag F:
  • Low-profile mount screw (M8 x 60mm)
  • Low-profile mount screw (M8 x 20mm)
  • 2 Flat washers
  • LVS34 Transducer Installation Instructions
  • The small top box includes:
  • 25′ Marine Network cable (RJ-45 plug on both ends)
  • 2 Cable collars (each with red gaskets and instructions)
  • Cable grommet (1.25″ diameter)
  • The large bottom box includes:

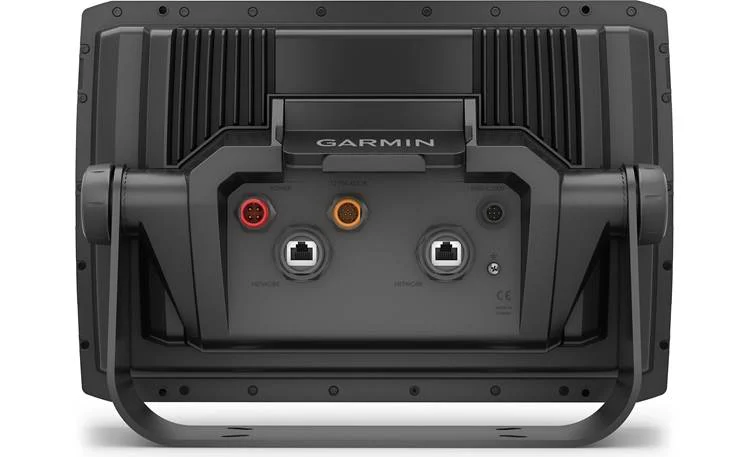

  • ECHOMAP Ultra 2 126sv display/control unit
  • Display cover
  • 6′ Power/data cable (with in-line 8A AGC glass fuse)
  • Bail-mount bracket/cradle assembly
  • 2 Bail-mount knobs (installed on bracket)
  • 4 Thick self-tapping screws (length 1″)
  • 4 Flat washers
  • 24″ Transducer adapter cable (8-pin to 12-pin)
  • 4 Thin self-tapping screws (length 1″)
  • Self-adhesive rubber gasket (4 pieces)
  • Flush Mount template
  • Ultra 2 Quick Start Manual
  • Installation Instructions
  • Important Safety and Product Information
